There seem to be many ways of referring to the various connectors and chip types found on motherboards and cards. This page illustrates various connectors along with the names used for them on this site. SCSI is a protocol, not a bus.
A given connector can have different pin-outs for different applications. These pages are merely an attempt to clarify the connector names used in hardware descriptions in this site.
Connections Page 2
CPUs and other chips are detailed here.

----Connections----

Keyboard, Mouse and power connectors

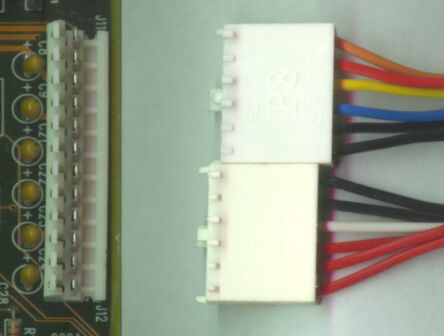

PS/2 power supply (aka "AT")

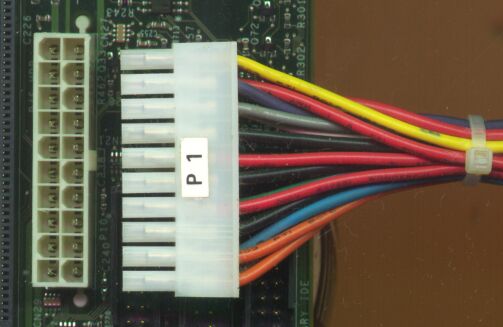

ATX power supply
AT keyboard (aka DIN-5)
PS/2 keyboard & mouse
8-pin Mini-DIN (Sun mouse & keyboard)

"DB-x" connectors

female DB-9
13W3 (Sun video)
female 2-row DB-15 (Apple)
female 3-row DB-15 (VGA/VESA video)
female DB-25 (aka Parallel B)
female DB-37 (aka Parallel A)

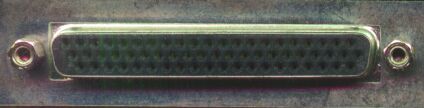

female DB-62
female DB-78

"LD-x" connectors

N.B.: "LD" is short for "low density" and indicates that the pins have .1" spacing.

LD-10 header (serial I/O)
LD-16 header (game I/O)
LD-50 header (narrow SCSI)

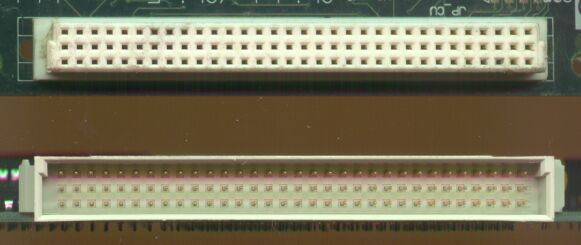

LD-96
