Modem || Network || Mobo CPU & processor boards || Main Memory Sound & Sound/Modem combinations Video and Video/Parallel combinations
PCI
(1) Intel EtherExpress/100B $4 photo
(tested; accepts 32-PLCC boot ROM)
(2) Intel 82557-based Ethernet $4 photo
(10/100Mb/s; accepts 32-DIP boot ROM; rear panel RJ-45;
identical parts & FCC IDs but different W98|| ID strings)
MCA
(1) 3Com EtherLink/MC TP $7 photo
(MCA ID: 6042 "3Com EtherLink Ethernet Adapter";
16-bit MCA; rear panel RJ-45 and DB-15)

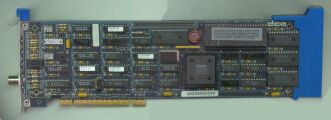

(4) DCA 000047 $5 photo
(MCA ID: 6E78 "DCA IRMA2-MCA Adapter"; graph interface;
16-bit MCA+VME)
(1) DCA 80-20103-000 photo
(MCA; graph interface; same PCB as 000047, very slight component differences)
(1) IBM Token-Ring Adapter photo
(MCA ID: E000 "IBM TR-Network 4Mbit Adapter"; 16-bit MCA;
FRU: 83x7488; rear panel DB-9; from PC Server 500?}
(1) IBM 16/4 Token-Ring Adapter $4 photo
(no MCA ID, passive?; 16-bit MCA; rear panel DB-9; FRU: 53f7748)
(1) IBM 16/4 Token-Ring Adapter $4 photo
(MCA ID:E001 "IBM TR-Adapter 16/4 or TR-Adapter 16/4 Trace & P.";
rear panel DB-9; FRU: 60b2542a)
(1) IBM Auto 16/4 Token-Ring Adapter photo
(MCA ID: E001 "IBM TR-Adapter 16/4 or TR-Adapter 16/4 Trace & P.";
16-bit MCA; rear panel DB-9; FRU: 74f9415)
(1) IBM Ethernet Adapter photo
(MCA ID: FFE0 "IBM LAN Adapter for Ethernet"; FRU: 48g7172;
rear panel connections: RJ-45, high-density Centronics-14 and BNC)
NuBus
(1) Asante Technologies MC3NB (ST-NIC-V) photo
(rear panel RJ-45 and 2 row DB-15 connectors)
(1) OkiData/Oki Europe OD31 photo
(rear panel RJ-45 and BNC connectors; solder side male LD-96;
component side female LD-96)
EISA
(1) Compaq 32-bit 16/4 Token Ring Controller photo
(rear panel DB-9 and RJ-45 connectors; accepts 44-PLCC boot ROM)
ISA-AT
(1) IBM Auto 16/4 Token-Ring Adapter (Revision 2) $4 photo
(ISA-AT, RJ-45 connector, FRU: 41h8452)
ISA-XT
(1) Apple LocalTalk PC Card photo
(DIP switches; real panel DB-9 connector)
(1) Computer Decision 8906-3 photo
("Super 8 Port RS-232 Card"; DIP switches;
W98 detected an "RC144AxF", but had no drivers)

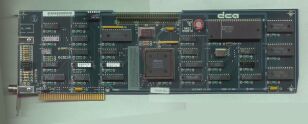

(10) DCA 000008 IRMA II $10 photo
(ISA-XT)

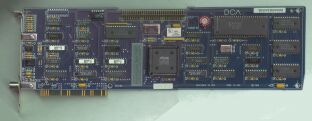

(2) DCA 003796 $20 photo
(ISA-XT; graph interface)
(1) DCA 60H2710 $20 photo
(ISA-XT; DB-15 and BNC connectors; "3Com Corp";
"L07538"; "P/N 1248-01 Rev. D")
(2) DCA 80-20048-000 $20 photo
(ISA-XT; graph interface)

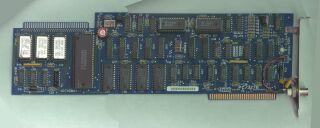

(14) DCA PC/3278 $5 photo
(ISA-XT; "IRMA Decision Support Interface";
the three board revisions look slightly different)
(4) IBM 92f4555b photo
(Token-Ring 16/4; rear panel DB9; accepts 28-DIP boot ROM)
(1) Kasten Chase Applied Research XPC91 photo
(ISA-XT; no jumpers or switches; 4 RJ-45 connectors; same as TTL XPC)

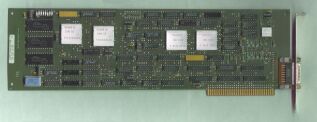

(1) IBM 6204913 $12 photo
(ISA-XT; 5250 Emulator, Full Length)

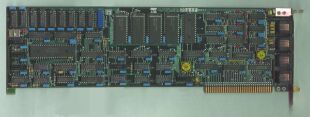

(2) TTL Systems Model photo
(ISA-XT; no jumpers or switches; 4 RJ-45 connectors)
(1) *unknown* PC NAU photo
(rear panel RJ-45 connector)
support for two busses
(3) DCA 007745 Rev. D IRMA III $5 photo
(MCA ID: 6EF8 "IRMA 3T 3270 CoAx Adapter";
ISA-XT/8-bit MCA convertible; rear panel RJ-45 & BNC;)
(2) DCA 003581 or 005026 $5 photo
(MCA ID: E7FF "IBM 3270 Connection Version A (Long Card)";
ISA-XT/8-bit MCA convertible; rear panel RJ-45 & BNC;)
(1) DCA IRMA III $5 photo
(MCA ID: 6E62; ISA-XT/8-bit MCA convertible; rear panel RJ-45 & BNC)
other
(1) Dell Optiplex 100TX NIC/90d photo
(100Mb/s Ethernet daughter-board for Dell's Optiplex GX Pro mobo (and others?).
(1) *unknown* 017-00131-01 photo
(rear panel RJ-45, BNC and 2 row DB-15 connectors; solder side high-density 62-pin header)
(1) Dayna Communications Daynaport E/CS-T photo
(rear panel RJ-45 connector; Sonic-T dp83934cvul-20 chipset)
