AGP
(1) nVidia 999.0 Rev. C $5 photo
(AGP2; Gateway2000 P/N 6001138; with drivers)
PCI
(1) Cirrus Logic 5434 PCI photo
(tested; 1MB DRAM with two empty DIP sockets;
with original driver CD)
(1) Matrox 757-00 $2 photo
(stand-alone accellerator card; adds 4MB VRAM to vid system;
requires a PCI vid card & free resources; tested)
(1) STB Systems Powergraph 64 photo
(S3 Trio64 chipset; onboard DRAM: 8x v53c8258hk45; tested)
Nubus
(2) RasterOps Paintboard Turbo XL photo
(1994; one with sub-chassis and Nubus adapter/riser, one without;
2 row DB-15 connector; Bt9066khf110 RAMDAC; Intel flash chip;
4MB 80nS DRAM)
MCA
(1) Vermont Microsystems Cobra photo
(MCA ID: 8009 "Vermont Microsystems Cobra"; 16-bit MCA + VME;
twenty-four d41264v-12 soldered ZIP chips;
additional DRAM: 512KB expandable to 1MB)
(1) IBM XGA-2 photo
(MCA ID: 8fDA "IBM XGA-2 Display Adapter"; FRU: 87f4774;
eight soldered tc524256bz-10 ZIP chips with no upgrade sockets
SBus
(2) Sun Campus | Color Frame Buffer * photo
(SBus; 13W3 connector)
VLB
(1) Diamond Stealth 64 DRAM T VLB $3 photo
(VLB; with optional memory; 2MB DRAM total)
(1) PTI-5424VL $5 photo
(1MB DRAM; with user's guide and set of 5 driver disks)
ISA-AT
(1) Definicon CAD Race 1024 $3 photo
(ISA; et4000ax-based; DB-9 and DB-15 connections)
(2) Realtek RTVGA_V3_91014 * photo
(Realtek rtg3106 based; 3 row DB-15 connector;
accepts 20-pin DRAM, 1MB max)
ISA-XT

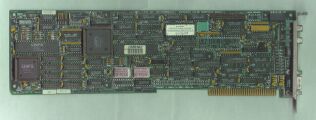

(1) Compaq Enhanced Color Graphics Board * photo
(DB-9 connector plus 2 RCA jacks; 1986; "board # 000412-001 Rev. B";
"assy no. 000410-003 Rev. N"; FCC ID granted Aug. 26, 1986;
from Compaq's Portable computer?)

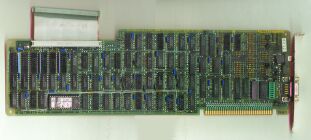

(1) Mitsubishi Electric Corp. Color Display photo 1 photo 2
(two full-length cards with 60-pin ribbon-cable interconnect;
main card has rear panel DB-9 plus one RCA;
secondary card includes 192KB DRAM;
copyright 1983; from a Uisys system?)
(2) Philips Multimedia Production Group Paradise Basic EGA Card photo
(DB-9 plus 2 RCA jacks)
(1) Philips Multimedia Production Group 22600 Rev. 1 photo
(ISA-XT; EGA; pega2a-based; DB-9 and plus two RCA connectors;
other numbers: 1986 OEM6M, 10386-2183)
(1) Philips Multimedia Production Group photo
(3 row DB-15 connector; pvga1a-based; OEM P/N: 61-603011-02; tested)

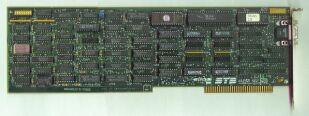

(1) STB Super Res 400 photo
(64KB 120nS DRAM; copyright 1984; DIP switches and two jumpers;
rear panel DB-9)

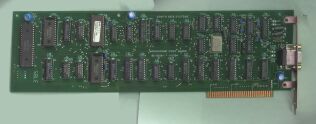

(1) Zenith Data Systems Monochrome Display Board 85-3058-1 * photo
(MDA; DB-9 connector; no parallel I/F)
other
(2) Apple 820-0522-A $1 photo
(1993; 2 row DB-15 connector; Bt9055 RAMDAC;
2MB 80nS DRAM plus two 72-SIMM slots)
(1) Western Digital 812592 * photo
(wd90c33-zz chipset; for an Apple (?); other numbers: ecd413k, v0011,
wdw06002444; Intel/IBM jumper setting;
read the silkscreen in a mirror)
(1) Apple 820-0541-b * photo
(monitor out board; 2 row DB-15 connector;
copyright 1993, 94; overgrown dongle)
-------------------video/parallel---------
ISA-XT

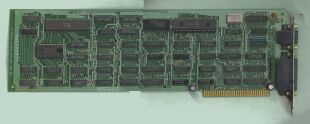

(2) Hercules GB102 photo
(HGA; DB-9 connector; 64KB RAM; includes DB-25 parallel I/F)
(1) CC&C (?) MDA-2000 photo
(MDA; DB-9 connector; includes parallel I/F; found near TRS-80 computers)

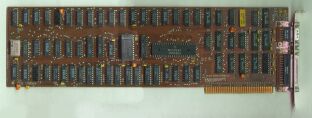

(4) IBM 1501985 V430 V011 photo
(MDA; rear panel DB-9 and DB-25 connectors;
used in the 5150 and other early IBM models)
