Modem || Network || Mobo CPU & processor boards || Main Memory Sound & Sound/Modem combinations Video and Video/Parallel combinations -------------------MIO, I/F & controllers- PCI (1) Symbios Logic NCR8250S PCI to S.E SCSI Adapter $10 photo (onboard LD-50 header; rear panel male HD-50 connector; tested) SBus (1) Sun ?? * photo (unknown model; HD-20 and HD-28 connectors; FCC ID: gwvbipro, granted as "S-Bus printer card") EISA *(2) Adaptec AHA-1740/42A photo (internal LD-50 header and external HD-50 connector; FCC ID: fgt1742a0) MCA (1) CMS Enhancements RT1000-MC $10 photo (MCA ID: 708D "Rancho Tech. RT1000-MC SCSI Host Bus Adapter"; 16-bit MCA; on-board LD-50; rear panel DB-25; accepts hard drive type 12V/5V power plug; with original driver disk) (1) Boca Research BRI4230 SCSI Card $15 photo (MCA ID: 60E5 "Dual Asynch./Parallel /2 (QuadRAM / Boca U.A.)"; 16-bit MCA; rear panel male DB-37; compare to $65 new) (1) Boca Research Boca MCA Parallel photo (MCA ID: 60C9 "Boca Bidirectional Parallel Adapter (QuadRAM)"; 16-bit MCA; rear panel DB-25) (2) Procomp SCSI Controller photo (MCA ID: 60ED "MDCB/2 & FDCB/2 Disc Coprocessor Board"; onboard LD-50 header; rear panel DB-37; 80188 processor) (1) IBM Dual Asynchronous Adapter photo (MCA ID: EFFF "Ibm Dual Asynch Adapter"; FRU: 34f0008; two rear panel male DB-9 connectors) (3) IBM 512KB Multiport/2 $40 photo (MCA ID: EFF0 "IBM RIC (ARTIC) Multiport/2 or X.25 Coprocessor/2"; full-length MCA host interface with daughter-board; 16-bit MCA; rear panel DB-78; 2MB parity RAM installed); 80186 processor @ 12.5; compare to $185 used and refurbished) (2) IBM PS/2 SCSI Adapter photo (MCA ID: 8EFF "IBM PS/2 SCSI Adapter With Cache (32/16-bit)"; rear panel female high density Centronics-60 connector; onboard 50-pin card-edge; 1MB parity RAM installed; 80188 processor) (1) IBM FRU: 72x6758 photo (no MCA ID, passive?; from PS/2 Model 50z; controller for external 5.25" FD; two-piece set: 3.5" FD carrier and 16-bit MCA card; rear panel DB-37) (1) IBM ST-506 Controller $12 photo (MCA ID: DFFD; 8-bit MCA; card-edge connectors for 2 HDs) (1) Mountain Computer Mach2 / QIC80 Tape Drive Adapter photo (MCA ID: 7401; rear panel DB-25, onboard LD-14 header, 16-bit MCA) (1) Storage Dimensions Model 2502657-001 photo (MCA ID: 0708 "Bustek BT-640A SCSI Host Adapter"; 16-bit MCA; single-ended SCSI; rear panel HD-50 connector; on-board LD-50 header) (1) Tecmar QIC Host Adapter $10 photo (MCA ID: 5125, "Tecmar QIC-60, QT-90, QT-125 Tape Drive"; rear panel DB-37; onboard LD-50; 16-bit MCA) VLB (1) Gemlight Computer DTK PTI-255W v1.2 * photo ("un1082"; full MIO card; 1994; jumpers for IDE: 240nS to 600nS) ISA-AT (1) ISA-TCL 3274 3080-000 Rev A photo (rear panel male HD-68 connector; 386SX-25 based wide SCSI) (1) Adaptec ACB-2370TS1 photo (ISA-AT; 20-pin "Drive-0" and "Drive-1" connectors; 34-pin "Control Cable" connector; 2 HD RLL controller; 1:1 interleave) (1) Adaptec AHA-1510 photo (DIP switches; two soldered terminating resisters; onboard LD-50; rear panel LD Centronics-50 connector; W98 has drivers on its CD; DIP switch descriptions on back; tested) (1) Adaptec AHA-1540B photo (jumpers; three terminating resisters installed; onboard LD-50; rear panel LD Centronics-50 connector; tested) (1) Adaptec AHA-1542C photo (IRQ jumpers; three terminating resisters installed; onboard LD-50 and LD-34; rear panel LD Centronics-50 connector; W98 has drivers on its CD; tested) (1) Co Time Computer CA8392-F photo (ISA-AT MIO card; with dongles) (1) DFI MIO-400KF photo (jumpers; rear panel connections:DB-25 LPT and male DB-9 COM A; onboard headers: LD-40 IDE, LD-34 FDC, LD-16 Game, LD-10 COM B; tested) (1) Compaq 000519 photo (DIP switches; onboard headers: LD-40 IDE and LD-34 FDC; rear panel connections: male DB-9 serial and DB-25 LPT; tested w/ W98; no 32-bit disk access; w/ switch descriptions) (1) Everex EV-349-01 * photo (ISA-AT; headers for floppy, Winchester, drive 0 and drive 1) (1) GoldStar Prime 2 Super IDE photo (ISA-AT; the phrase "FCC APPROVE ID JBGPRIME-2" is worthless; tested) (1) Kofax Image Products 13000028 photo (ISA-AT; 1991; DB-62 connector; includes 256KB of 80nS DIP RAM on Kofax 13000020 daughterboard) (1) Philips LMS CM260 photo (I/F card for proprietary-bus CD-ROM; 16-pin header; IRQ can be set from 3 to 15; FCC ID granted July 14, 1993) (1) Prima Design Systems Prima Intelligent Run-Time Card photo (no adjustments; latching LD-26 PPU header; latching LD-26 Scanner header; rear panel connections: male DB-9 for Tablet and DB-25 Printer Port) *(1) Promise EIDE MAX photo (ISA-AT; single EIDE channel; IRQ 12, 14 or 15; jumpers for sec/pri and BIOS address; LED connector) (1) SAE Model NCL 530 photo (jumpers; one IDE channel with no floppy; tested) (1) Western Digital WDAT-240 photo (jumpers; one IDE channel and one FDC; wd37c65bjm-based; this card sees regular use) (2) Western Digital? 61-031099-00 photo (jumpers; "(c)1983 Fixed Disk-Floppy Diskette"; onboard headers: two LD-34 & two LD-20; wd1010-based) (1) Western Digital WD1003-WA2 photo (ISA-AT; controls 2 HDs at 3:1 interleave and 2 FDs) (1) Western Digital WD1003S-WAH photo (ISA-AT; controls 2 HDs at 3:1 interleave (?) and 2 FDs) (1) Western Digital WD1007A-WA2 photo (ESDI; controls 2 HDs at 1:1 interleave and 2 FDs; LL format at C800:5) ISA-XT
(1) Allen-Bradley 960588 $40 photo
(DIP switches and jumpers; rear panel DB-62;
compare to $700 used and refurbed)
(1) Alloy P.C. Host Interface Adapter photo
(ISA-XT; DB-62 connector; 1984)

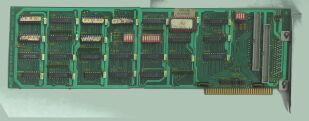

(1) Alloy QXS-PC Dual SCSI card photo
(ISA-XT; jumpers and DIP switches)
(1) AST SixPakPlus Serial/parallel card photo
(ISA-XT; DIP switches and jumpers; button-battery backup;
can double as mem expansion card)
*(1) Corel LS2000PC photo
(NCR 53c400-based SCSI; on-board LD-50 header; rear panel DB-25;
4-pin HD light connector)

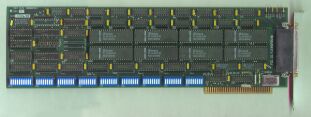

(1) DigiBoard Incorporated 46W70198 photo
(jumpers and DIP switches; rear panel DB-78)
*(1) DM PII-151B Mini/Micro-2 FDC Card $1 photo
(ISA-XT)
(1) GoldStar CA8202 photo
(jumpers; onboard headers: LD-10 COM A and LD-10 COM B;
rear panel connections: two row DB-15 Game and DB-25 LPT)
(1) Hitachi TCD-IF8P photo
(SCSI CD-ROM I/F; onboard LD-40; rear panel DB-37;
Windows3.1 drivers are available)
(1) IBM 1501987 photo
(jumpers; from a 5150?; tested w/ W98; works well for printing
but not suitable for more demanding applications)
(1) Logitech Mouse Interface photo
(ISA-XT; P/N 200033-000; selectable IRQ: 2, 3, 4 or 5)
(1) Microsoft InPort photo
(original equipment on my DFI 3486-UCF mobo)
(1) Seagate Technology ST 11R photo
(ISA-XT; RLL controller; 20864-001 Rev. D)
(1) Western Digital? EA1030-102? photo
(SCSI CD-ROM I/F?; onboard LD-26; 4-pin audio-type header;
accepts hard drive-type power plug; built around a wd11c00-jt & a d2764c)
other
(3) Heath Z-207 Floppy Disk Controller * photo
("IEEE 696 SLA"; LD-28 and LD-40 headers; DIP switches)
(2) Orange Micro Grappler Interface photo
(fits old Apple slots; 20-pin header)
(1) Practical Peripherals Printerface Card photo
(fits old Apple slots; 20-pin header)
(1) THETA,Z,INKER DRIVERS * photo
(Theta logo; "TELTEC O1V 4592"; dual latching 20-pin connectors;
for a Heath?)
no bus required
(1) Artificial Technology ?? photo
(from a PS/2; double-sided tape; unknown model; for connecting external FD?;
plugs into FD cable with DB-37 dangling out the back of the computer)
(1) Intergraph Corporation Intergraph-3-0 photo
(8-bit narrow SCSI expander; 4 screw holes; not sure about model name)
(2) ?? FP1T13B photo
(unknown make; attaches to PS/2 FD and provides a card-edge connector;
if your FD has only a "ribbon-edge" slot, you need this;-)
-------------------Memory Expansion-------
*(2) IBM 84f8166 photo
(4 72-pin slots; plugs into 82-pin slot; from 8590 mobo)
